Renewable Natural Gas

Solutions for Processing Renewable Natural Gas

The use of renewable natural gas is one way that companies can reduce emissions and contribute to creating sustainable energy. By separating, dehydrating, and removing H2S and CO2 from biogas, we are left with a biomethane, a cleaner-burning fuel that can be injected into gas pipelines. CROFT offers several product lines that can help treat renewable natural gas efficiently and our engineering team can customize biogas processing equipment to your specifications.

rng processing steps
4 bottle passive dehydration system

Dehydrates BioGas with Zero Emissions

CROFT Passive Dehydration Systems can be skid or trailer mounted for your biogas needs. Biogas is fully saturated and must be dried to make pipeline-compatible renewable natural gas. These solid desiccant dehydrators are a safe, emission-free option for dehydrating biogas.

This dehydration unit works by saturated biogas flowing upward through a series of dry desiccant vessels each containing our specifically formulated enviroDRI® desiccant. This non-hazardous product absorbs the moisture and dissolves into a brine solution that is drained to the water storage on location.

CROFT Passive Dehydration Systems can be skid mounted or trailer-mounted with separators and/or coalescing filters for easy transportation.

Gas Sweetening System (GSS)

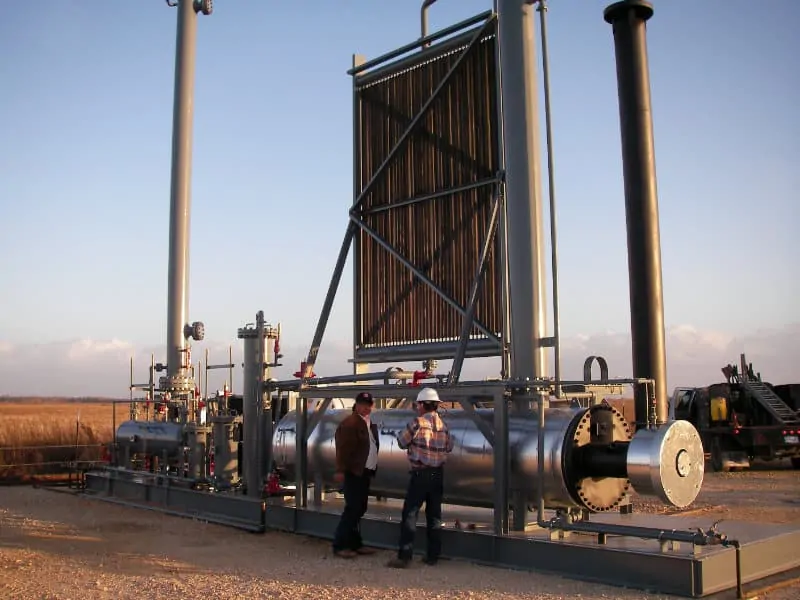

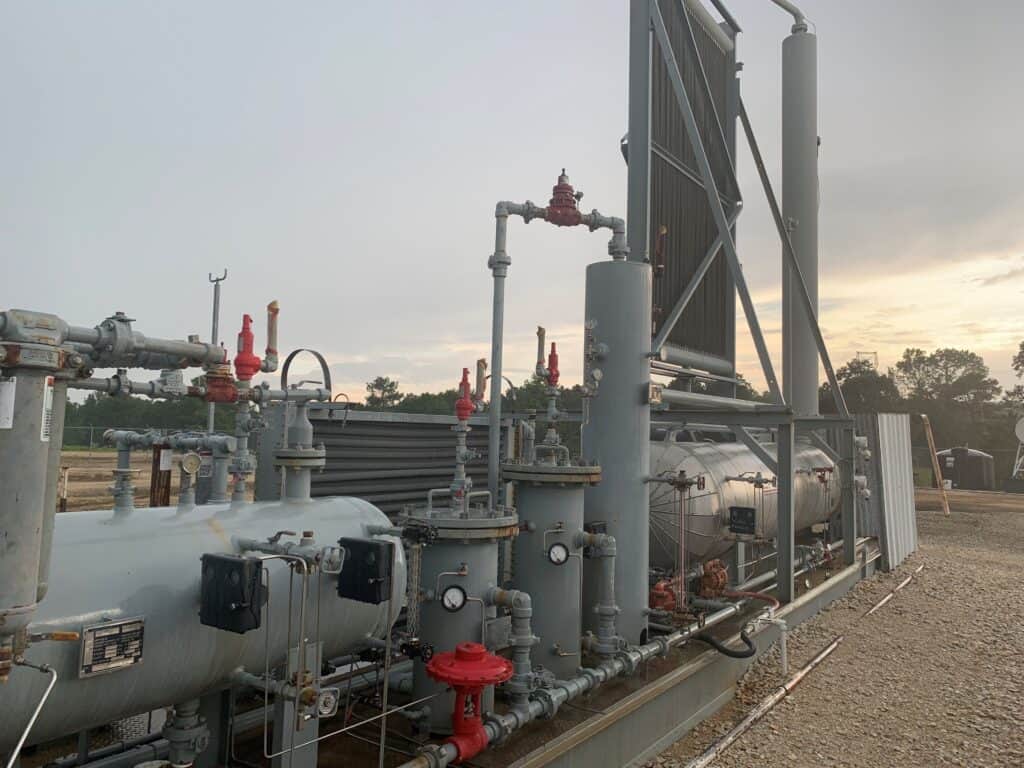

CROFT Amine Plant

All-in-One Skid for Sweetening Biogas

Biogas sweetening refers to the process of removing H2S And CO2 (hydrogen sulfide and carbon dioxide) from biogas. Carbon dioxide and hydrogen sulfide are often found in raw biogas. CO2, when combined with water, will create carbonic acid which is corrosive. H2S is an extremely toxic gas that is very corrosive to equipment and must be removed to create renewable natural gas that can be injected into the pipeline.

CROFT offers Gas Sweetening Systems (GSS), also known as an Amine Plant that can efficiently remove H2S And CO2 from biogas. The GSS are built in an all-in-one package to allow easy transportation and installation.

CROFT designs and manufactures gas sweetening amine plants with rates of up to 10 GPM of amine. Using the given parameters, we will design the most efficient system to handle your biogas.

Iron Oxide System (IOS)

CROFT IOS close-up

Simple & Safe Solution for H2S REmoval

Iron Oxide Systems (IOS) utilize one of the most common methods of gas sweetening, utilizing a chemical reaction process using iron oxide media in a contact vessel for H2S removal in gas streams. This unit offers excellent removal of H2S and other mercaptans and works well with varying volumes and H2S levels in biogas.

In an Iron Oxide Unit, the biogas travels through contact towers filled with a media bed of iron oxide pellets. The pellets of iron oxide react with the biogas to completely neutralize the H2S, resulting in sweet biogas.

Typically configured in a single or multi-vessel configuration, the system operates as a batch removal system where the media is replaced once spent. The spent media can be disposed of in traditional landfills without the need for expensive toxic disposal.

Resources

CROFT RNG

The Rise of Renewable Natural Gas

By Croft Productions | July 22, 2021

This case study will focus on treating fuel gas for gas lifts utilizing CROFT’s Fuel Gas Conditioning System.

horizontal separator

Frequently Asked Questions | Separators

By Croft Productions | December 7, 2020

Get answers to our client’s most frequently asked questions about our Fuel Gas Conditioning System (FCS)

Frequently Asked Questions | Amine Plants

By Croft Productions | July 30, 2020

Amine Plant processing Acid Gas

passive dehydration system

Glycol Dehydration versus solid Dessicant Dehydration

By Cameron P. Croft | May 21, 2020

Absorption vs. Adsorption Dehydrating natural gas, or the removal of water vapor from natural gas can be done by either adsorption or absorption. Croft’s Passive Dehydration System uses adsorption, where water vapor is collected and condensed on the surface with the use of a solid desiccant. Solid desiccants have a high adsorption capacity, a low resistance to gas […]

truck of enviroDRI desiccant=

Frequently Asked Questions | enviroDRI

By Cameron P. Croft | May 5, 2020

CROFT Passive Dehydration Systems natural gas dehydration unit that utilizes a specially formulated solid desiccant called enviroDRI to adsorb water from the gas stream. Below are our clients’ most commonly asked questions about enviroDRI. What is enviroDRI? enviroDRI is a deliquescent desiccant pellet about the size of an almond designed to adsorb water from hydrocarbon […]

pdsrendering

How a Passive dehydration System Works

By Cameron P. Croft | April 30, 2020

This is Croft’s preferred alternative to the glycol unit for natural gas dehydration. Dehydration is a critical process required to meet pipeline specifications.
